[E-trademarks] Yet another really bad defect in Trademark Center

Tue Sep 23 17:07:11 UTC 2025

If the USPTO had done even half-decent beta testing of TC, then the
really bad defect that I am about to describe would never have gotten
into the production version of TC.

To say this differently, the fact that the defect I am about to describe
is right now present in the production version of TC absolutely proves
that the so-called "beta testing" of TC was no such thing.  It was, at
best, sort of going through the motions, pretending to do genuine beta
testing but utterly failing to do proper beta testing.

Take a look at this TSDR page.
<https://tsdr.uspto.gov/#caseNumber=99407734&caseType=SERIAL_NO&searchType=statusSearch>
What does it show as the mark?  You can see it on that page.  That page
says the mark is "FX BRALN AR".

Now the first reaction that many might have is that this application
must be one of those Chinese applications that strings together six or
seven consonants, tosses in one random vowel, and finishes with a mark
that no human mouth could ever pronounce. But no, this application
cannot be one of those, because it has spaces in it.  The randomly
generated Chinese filings never have spaces in them.

Okay so what explains this weird mark?  The next step for the forensic
analysis of the defective Trademark Center is to click in TSDR on
"documents" and click on "Application".

At this point, we need to start very carefully distinguishing between
"actual characters that the practitioner entered into TC" and "stuff
that got generated by defective software that is not the fault of the
customer".

First let's focus on "actual characters that the practitioner entered
into TC".  And the place to find this is by scrolling down to "mark
description".   This is exactly what the practitioner copied and pasted
into Trademark Center during the e-filing process.  The practitioner
pasted this:

    the characters "FX brAIn AR"

Now at this point what the forensic analysis requires is some absolutely
authoritative way to prove that the practitioner either copied and
pasted an "I" or an "L" (or maybe a vertical bar!) into that place
between the "A" and the "n".  Yes, one possibility is that this screwup
is the practitioner's fault, because the practitioner copied and pasted
an "L".  The other possibility is that the USPTO developers of Trademark
Center screwed up in the coding of the software (and failed to do proper
beta testing), and somehow placed into production some software that
would methodically change an "I" into an "L" /*in a way that would not
be apparent to the practitioner at any point in the e-filing
process*/ but that would reveal itself only /*after the application had
been e-filed, when it is too late to fix.*/

Which of these two things is true?  Did the practitioner screw up?  Or
did the developers screw up?

My favorite forensic-analysis tool for uncovering mistakes about
character coding is this Unicode decoder
<https://www.babelstone.co.uk/Unicode/whatisit.html>.  There are many
tools that provide this kind of coding analysis but this one is my
personal favorite.  So you can follow along with this if you like.  It
is actually a very helpful learning opportunity for practitioners to
learn about Unicode.  (And it would be a very helpful learning
opportunity for the USPTO developers who gave us Trademark Center.)  So
please, settle down with a source of caffeine and click along with me.

You open up this Unicode decoder
<https://www.babelstone.co.uk/Unicode/whatisit.html> and you get ready
to use it.  But next, open a new browser window and click on the TSDR
page
<https://tsdr.uspto.gov/#caseNumber=99407734&caseType=SERIAL_NO&searchType=statusSearch>,
click on "documents", click on "application", scroll down to the "mark
description".  Copy the mark description which is "FX brAIn AR" and

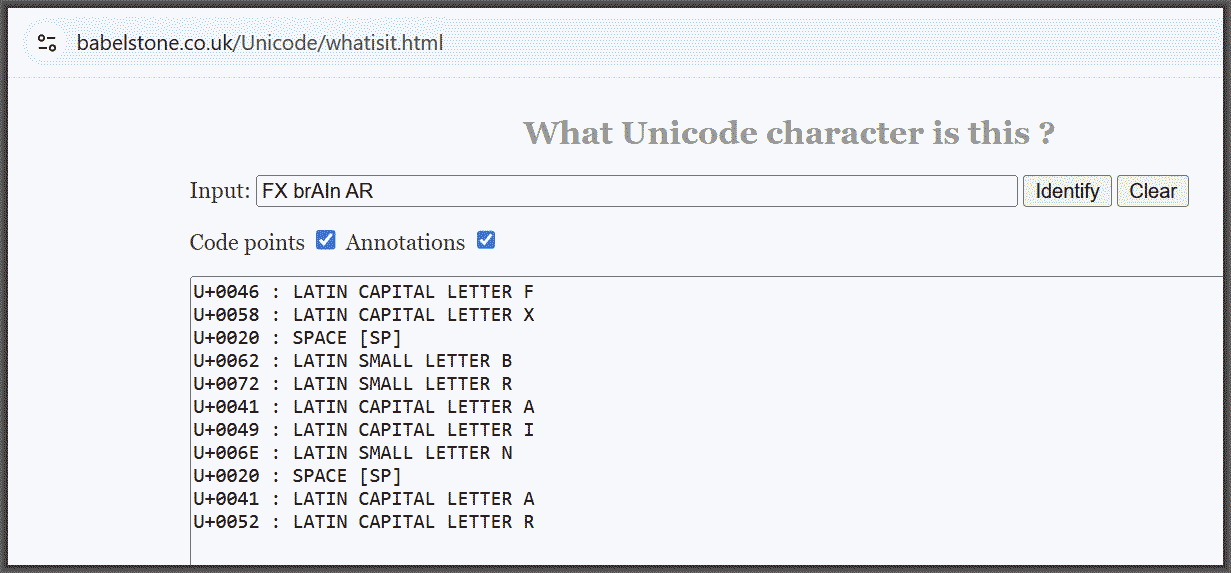

paste it into the Unicode decoder. Click on "identify".  What you will
see on your own computer screen is this:

This proves that the party who screwed up was not the practitioner.
This proves that what the practitioner copied and pasted into Trademark
Center was a "LATIN CAPITAL LETTER I".

So we now scratch our heads and we try to work out what exactly are the
very poor software decisions inside Trademark Center that somehow led to
this situation that what auto-loaded into TSDR in the most prominent
field was "FX BRALN AR".  What were the software decisions somehow
changed the "I" to an "L" /*during the e-filing process*/ and yet
/*concealed it from the practitioner*/ and then waited until /*after the
practitioner clicked "submit"*/ to reveal the change?

How could this possibly have happened in the software?

I have a theory as to the mistakes made by the developers in this
specific case.  I cannot be sure about it because of course the
developers don't do their work in an open-source way (open to the user
community).  But this is my theory.

Recall that during the filing process, TC asks whether you want a
standard character mark or a stylized mark and so on.  If you pick
anything other than "standard character" then TC requires that you
upload a drawing.  In this case the practitioner uploaded this drawing:

As we know, the drawing is a raster drawing (not vector-drawn). It is
just individual pixels that are either black or white.  When you are in
raster world, nothing about the computer file takes a position one way
or the other as to whether the thing between the "A" and the "n" is a
vertical bar or an uppercase sans-serif "I" or is a lower-case
sans-serif "L" or maybe is none of those things.  It is just a bunch of
pixels.

Here is where the TC developers thought they were smarter than everybody
else.  At this stage, the TC developers made use of some OCR engine and
ran it on the drawing, and then the software popped up a message on the
screen that asked "we think the literal element of your mark is this,
did we get it right?"  And the "literal element" characters on the
screen were:

    FX brAln AR

At this point, the practitioner looked at the screen, and it didn't look
wrong.  So the practitioner clicked to say "yes that looks like our
literal element".

Here is the evil, I think.  I think the TC developers' OCR engine
/wrongly identified that character as a lower-case L./

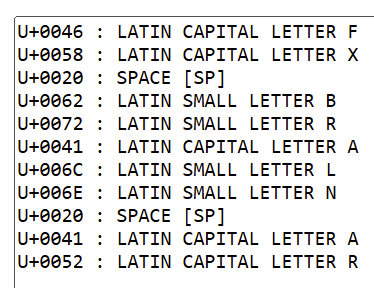

Our forensic analysis proves this.  Go to the "application" file in TSDR
and scroll back up a line or two to "literal element" and you will see
"FX brAln AR".  Now you can copy and paste the "literal element" into
the Unicode decoder and here is what you get:

Yes, the "literal element" OCR engine employed by the TC developers
wrongly identified the thing between the A and n as a SMALL LETTER L.

During the e-filing process, this mistake would never have revealed
itself to the practitioner for at least two reasons. First, the
developers chose to use a sans-serif font that makes it impossible to
visually distinguish a lower-case L from an uppercase I. Second, the
dramatic reveal (converting the entirety of the literal element into ALL
UPPERCASE LETTERS) happened only /*after*/ the practitioner clicked
"submit".

As I say, I cannot be absolutely sure that what I just described in the
previous ten paragraphs is exactly what they did wrong.  It is only my
educated guess from the forensic analysis and from my decades of
experience in the world of computer programming.

But if there had been anything close to competent beta testing done,
this would have revealed itself long before the end of the beta testing
process.

The biggest design blunder was to postpone the conversion to ALL UPPER
CASE of the "literal element" characters until it was too late for the
practitioner to see what the OCR software had gotten wrong.  If you, as
a developer, are aware that what will get loaded into the most prominent
place in TSDR is the ALL UPPER CASE version of the "literal element"
characters, then you need to fess up to this /*at the earliest possible
point*/ in the Trademark Center click path.

A lesser but still significant blunder was to fail to use a serif font
at this most crucial stage of the click path.  The serif font might well
have tipped off the practitioner of the OCR fail.

At the point in the click path where the developers say "we think the
literal element of your mark is this, did we get it right?", what
absolutely should have appeared on the screen is the text that later got
slotted into that most prominent place in TSDR. What should have
appeared on the TC screen was:

    FX BRALN AR

Again, in case I perhaps failed to mention it, had the purported "beta
testing" of Trademark Center actually taken place, this user interface
mistake would have gotten caught and corrected long before the release
of Trademark Center into production service.

Given that the USPTO's CX team for Trademark Center is now decimated,
with a staff size of "1", and given that the purported "beta testing" of
TC allowed mistakes like this to reach production service, I am aghast
that the Trademark Office would now plow ahead with continued cutoff of
other TEAS functions. According to the earlier-quoted email, the next
two TEAS functions to be cut off would apparently be the Voluntary
Amendment ("VA") form and the and Change Address or Representation
("CAR") form.

There should be a hard stop on any further cutoff of TEAS functions (by
which I mean migrating them to TC) until such time as the Trademark
Office works out a proper way to beta-test its work with the expansion
(mission creep) of TC.

See the three recent postings about experiences that three people had as
they participated in the purported "beta testing" of Trademark Center,
to get a sense of how badly the purported "beta testing" fell when
compared with what proper beta testing would have been like.  USPTO
interviewers, for example, who made clear from their questions that they
had not even a clue about what it means to prepare or file a trademark
application.

Again to anyone at the USPTO who might listen, the hundreds of members
of the e-trademarks listserv stand ready to help.

Carl
