[Patentpractice] reliable way to compare SHA-512 strings from Patent Center?

[Jim Larsen]

FYI, both Windows and MacOS have built-in SHA512 tools, so no need to download new tools unless you want/need a GUI.

Windows (command line):
certutil -hashfile filename SHA512

MacOS (Terminal)
sha512 filename

Best regards,

-Jim

James C. Larsen
Attorney
Larsen IP PLLC
p: 425.298.6846
e: jim at Larsen-IP.com<mailto:jim at Larsen-IP.com>
w. www.Larsen-IP.com<http://www.Larsen-IP.com>

NOTICE OF CONFIDENTIALITY: The information contained in this email, including any attachments, is confidential and may be privileged. It is intended only for the use of the individual(s) or entity named herein. If the reader of this message is not the intended recipient or authorized agent, you are hereby notified that any dissemination, distribution, or copying of this communication is strictly prohibited. Unintended recipients are requested to notify the sender immediately and to permanently delete this e-mail, any attachments, and copies.


From: Patentpractice <patentpractice-bounces at oppedahl-lists.com> on behalf of Rick Neifeld via Patentpractice <patentpractice at oppedahl-lists.com>
Date: Friday, December 13, 2024 at 12:45 PM
To: For patent practitioners. This is not for laypersons to seek legal advice. <patentpractice at oppedahl-lists.com>
Cc: Rick Neifeld <richardneifeld at gmail.com>
Subject: Re: [Patentpractice] reliable way to compare SHA-512 strings from Patent Center?

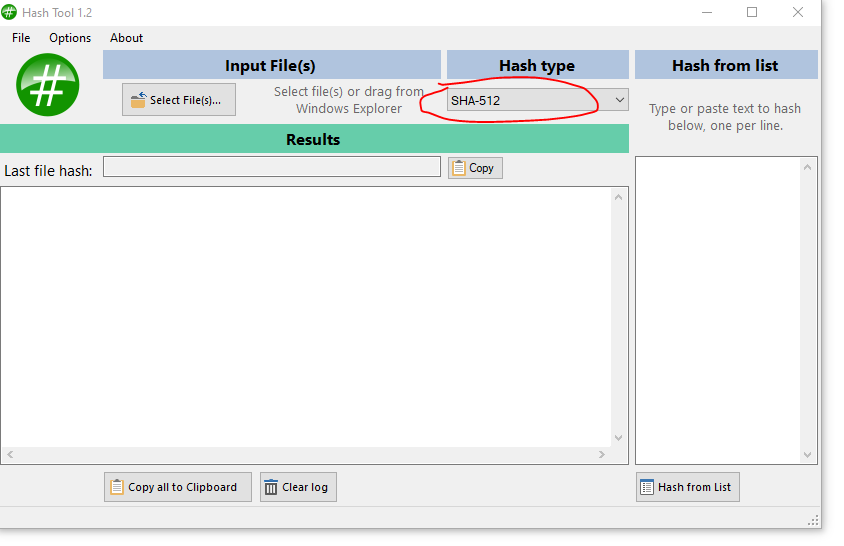

HashTool, a free MS software standalone dones this just fine.  Set it to SHA-5123, as shown below.

[cid:ii_m4n7uicx0]



On Fri, Dec 13, 2024 at 2:59 AM William Ahmed via Patentpractice <patentpractice at oppedahl-lists.com<mailto:patentpractice at oppedahl-lists.com>> wrote:
Dear List,

BACKGROUND (The Old Days -- EFS Web)

Until 2023, we always submitted filings via EFS web. EFS web provided the BYTE COUNT upon filing.

This was great and important.

If 3 years later, when filing the figures for a continuation application, I wanted to make 100% sure that I was re-filing the exact same pdf file (instead of another version with the same file-name),
I would check the byte count (usually using an MS-DOS window - yeah, I am over 50 years old) to make sure.


PATENT CENTER (I need the same functionality that I used to have)

Now we live in the world of SHA-512 - Patent Center gives SHA-512 rather than bye count.
I want to do the same for Patent center - I want the ability to take a pdf file on my computer (e.g. 11 months after filing a US provisional), run it through SHA-512 and reproduce the SAME SHA-512 string.

I am embarrassed to say that I TRIED and I  FAILED

In Jan 2024, a US provisional was filed -- the drawings file (USProvfiguresJan2024.pdf had a SHA-512 value of "abcdefg".
I now downloaded and installed a free "Digital Volcano Hash tool" -- I gave it USProvfiguresJan2024.pdf and asked for the
SHA-512 string.
The 'SHA-512' hash strings did NOT match.


What am I doing wrong?

Thanks,
Bill
--
